Two-Story Duplex Plan: 3 Bedrooms, Dual Garages, And Efficient Footprint

Description

This two-story duplex design offers 1,460 square feet of living space per unit, combining functionality and style. Each unit includes a main floor with 614 square feet and an upper floor with 846 square feet. The front porch provides a welcoming entryway, while each unit has its own 232-square-foot garage with convenient front access.

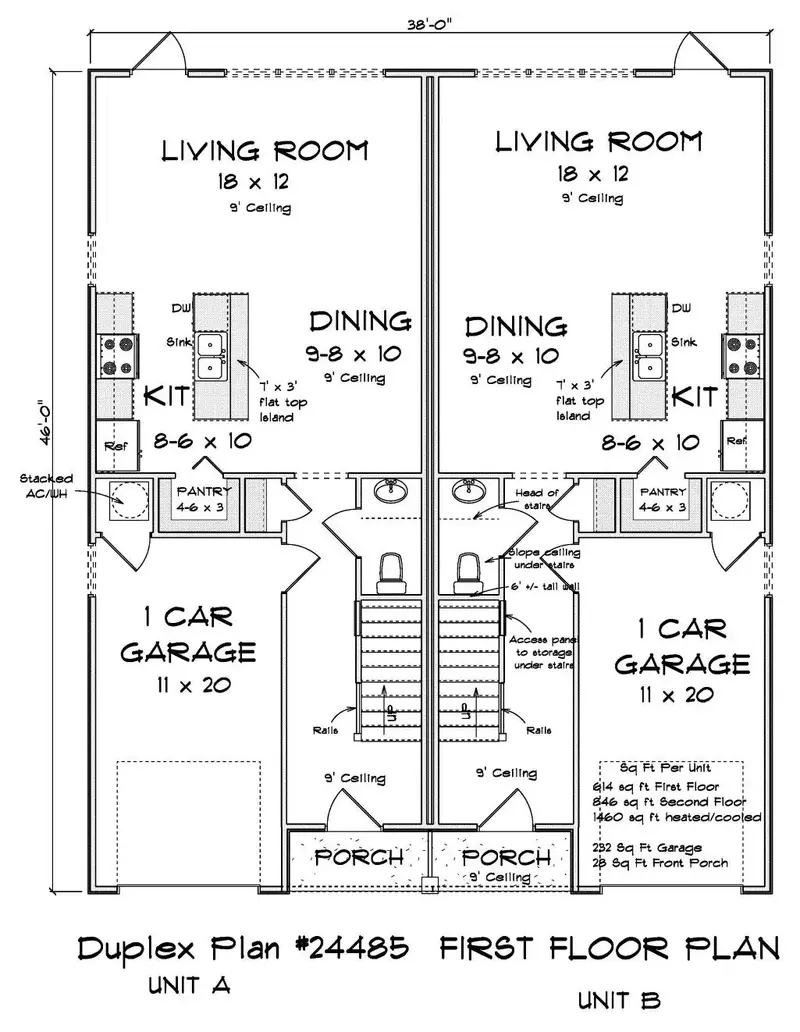

The layout features a practical kitchen with a walk-in pantry and a central island, ideal for meal prep and storage. The bedrooms are thoughtfully arranged in clusters, fostering a cozy living environment. Each unit’s master suite is situated on the second floor, complete with direct access to the bathroom for added privacy.

Constructed with 2×4 wall framing, a 6:12 roof pitch, and a compact footprint of 19 feet in width, this duplex design maximizes space within its 46-foot depth. Standing at 28 feet in height, this layout is well-suited for families or residents seeking efficient, comfortable living in a shared structure.
